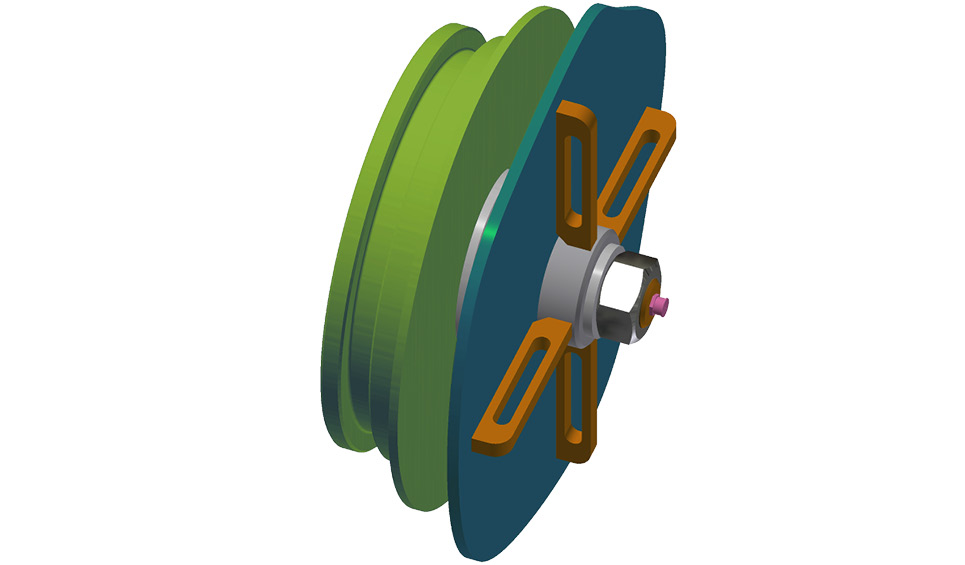

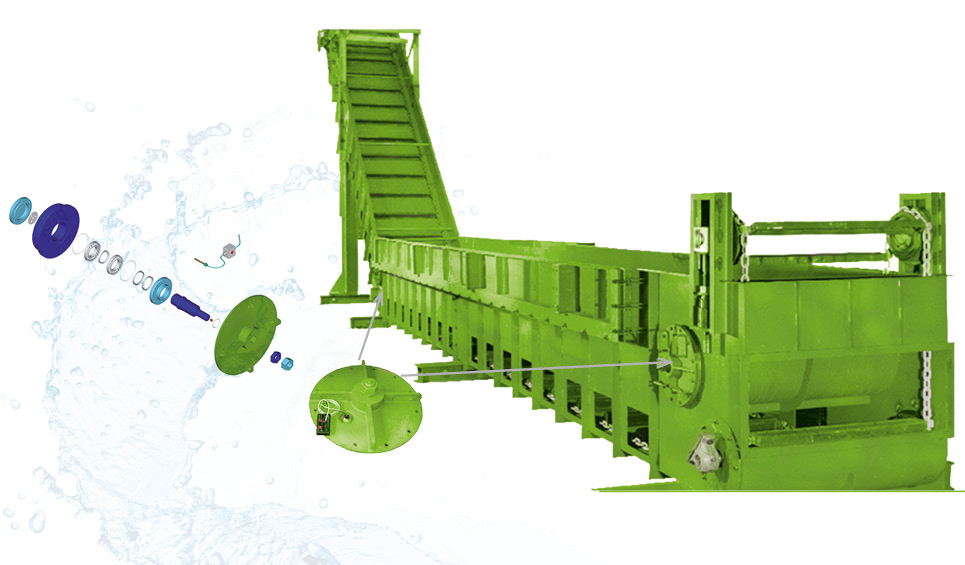

In contrast to the normal deflection roller, the SOI underwater roller is a complete component that has been optimally designed by RUD for use on wet decoilers in the field of conveyor technology. It consists of the replaceable end shield, the RUD deflection roller, the complete overhung bearing and, optionally, the electronic circulation control.
Numerous applications worldwide are proof of its high availability.
Areas of application
- Use in the conveyor system

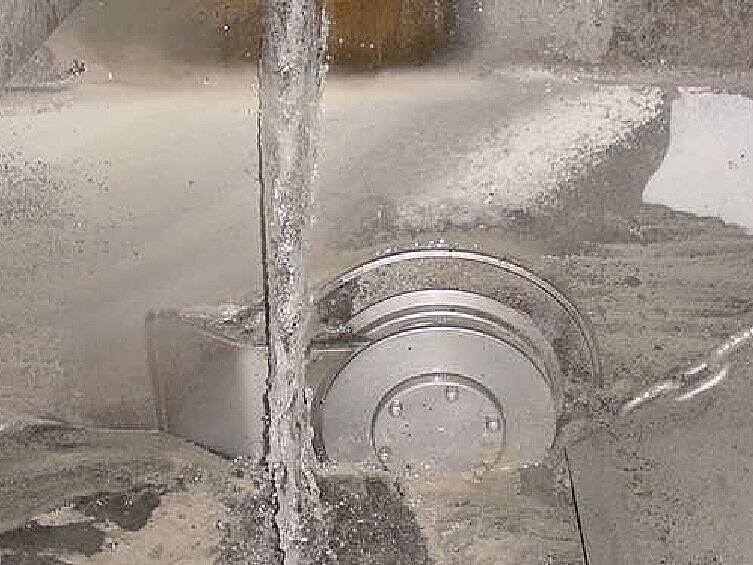

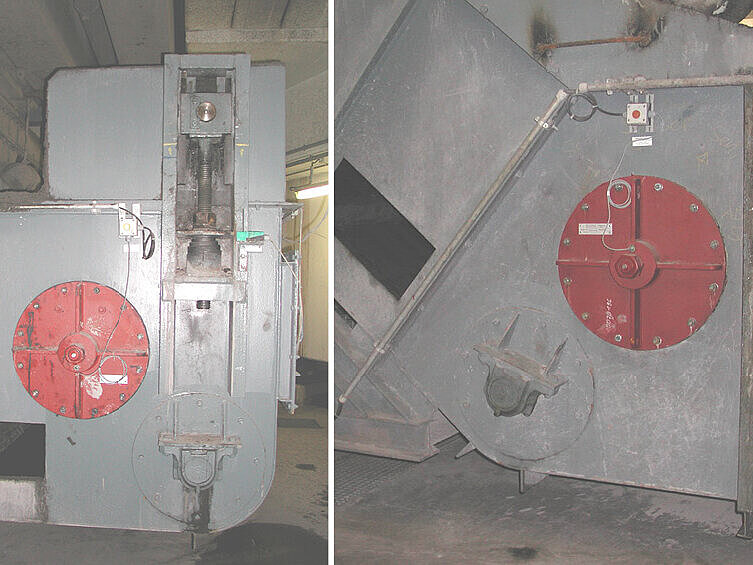

- Wet ash removal, for example in coal-fired power plants
- As chain deflection
Advantages
- High-quality, robust and smooth-running bearing technology
- Optimized bearing seal
- Ideal for wet ash removal
- Suitable for retrofitting old systems
- Overhung bearing
- Easily accessible for maintenance work
- Available in all deflection roller dimensions

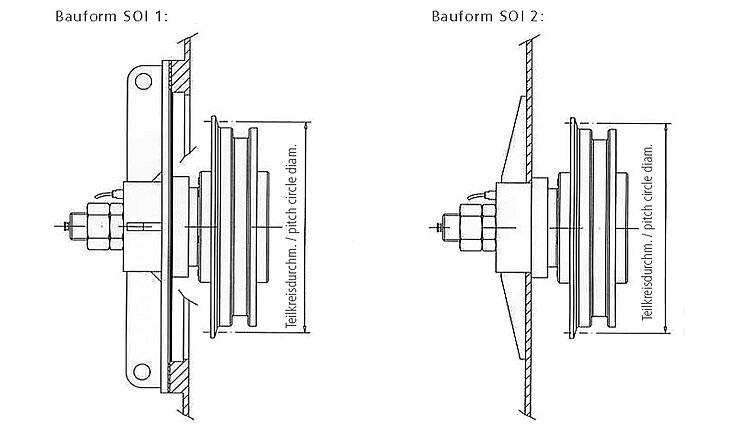

- Two design variants: with end shield or without end shield in fixed housing hub
- Electronic circulation control optionally available
- External wall mounting on the trough
RUD Fördertechnik - Plant & mechanical engineering
RUD Fördertechnik - Anlagen & Maschinenbau offers you a wide range of systems, equipment and solutions for your application.
We design and manufacture elevators, continuous conveyors, chain conveyors, bucket elevators or scraper chain conveyors, preferably based on round steel chains as a means of traction. If required, we also use link chains and belts.
Our engineers have a broad background knowledge and support you as a competent partner in solving your individual conveying task. On request, RUD Service will visit you on site and support you with the installation, conversion or maintenance of your system/machine.
