RUD reversion wheels for forked-link chain

Benefit from the longer service life of the guide roller for FORKY fork link chain. This is achieved by the induction-hardened contact surface.

Application areas of RUD reversion wheels for forked-link chain FORKY

Areas of application

• As deflection for forked link chain FORKY

Condition of conveyed goods:
RUD reversion wheels for forked-link chains FORKY are ideally suited for transporting powdery, grainy, flaky, dusty or fragmentary material

Application:
Construction-, wood-, paper-, plastic-, food and feed industry, chemical industry, mills, port cargo handling, agriculture and recycling industry

Advantages

  • One-piece design
  • Induction-hardened contact surface

Technical data

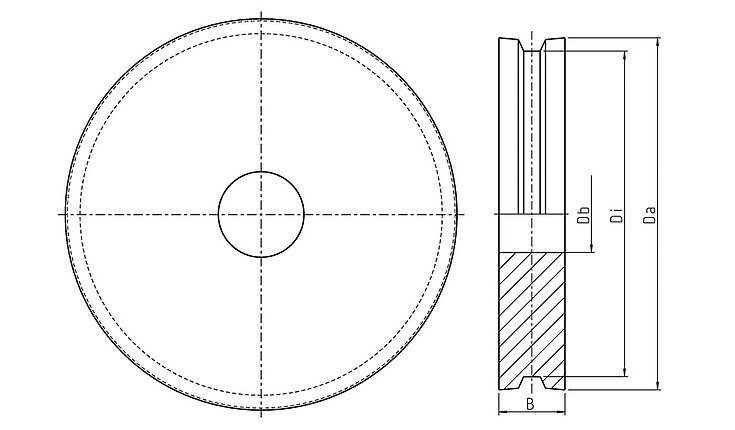

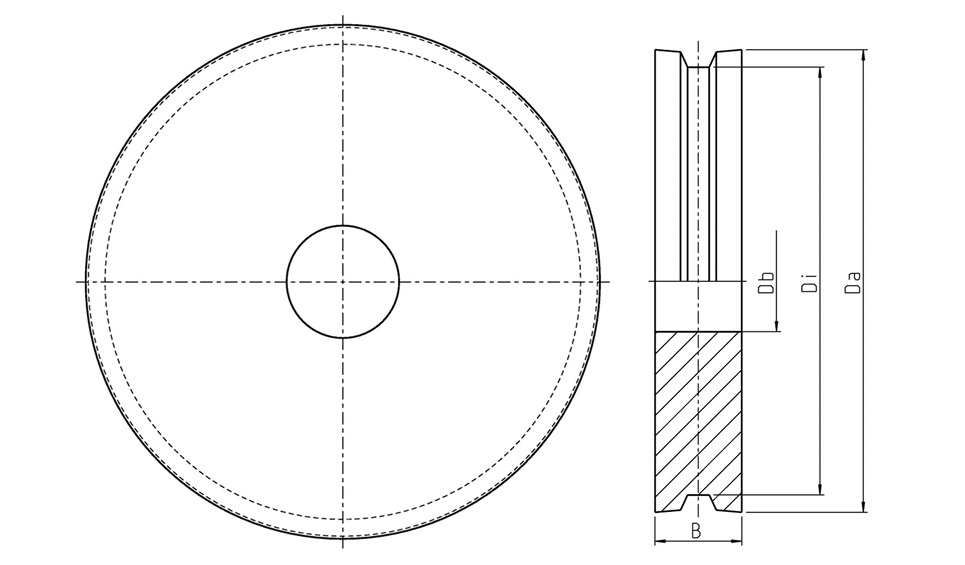

Size teeth TK in mm Di in mm Da in mm B in mm Db inmm
142 x 50 x 19 6 284.00 210 234 50 40
  8 371,06 296 320 50 40
  10 459,52 391 415 50 40
  12 548,64 476 500 50 40
  14 638,15 564 588 50 40
142 x 50 x 29 6 284.00 210 234 70 40
  8 371,06 296 320 70 50
  10 459,52 391 415 70 50
  12 548,64 476 500 70 50
  14 638,15 564 588 70 50
200 x 50 x 25 6 400.00 325 349 40 25
  8 522,63 447 471 50 25
  10 647,21 572 596 50 30
  12 772,74 679 721 50 30
250 x 60 x 30 6 500.00 418 442 80 60
  8 653,28 571 595 80 60
  10 809,02 727 751 80 60
  12 965,93 884 908 80 60
260 x 75 x 31 8 679.41 580 604 80 60
  10 841,37 742 766 80 60
  12 1004,56 905 929 80 60

Further products.

Take a look at other products that will make your systems even more efficient:



RUD round link chain
RUD central chain
RUD FORKY fork link chain
RUD connectors
RUD sprockets
RUD Wheels
RUD driver
RUD Forky driver
RUD Bucket attachments
RUD Bucket
RUD scraper

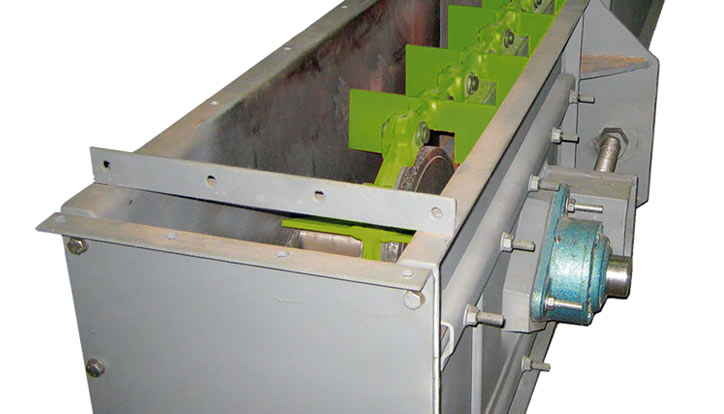

RUD Fördertechnik - Plant & mechanical engineering
