RUD cup mounting system SWA

The RUD bucket attachment system SWA is used as a branch link attachment for use in conveyor technology / bucket elevators / conveyors / elevators / chain conveyors in the bulk materials industry with gravity discharge such as center discharge bucket elevators and return bucket elevators.

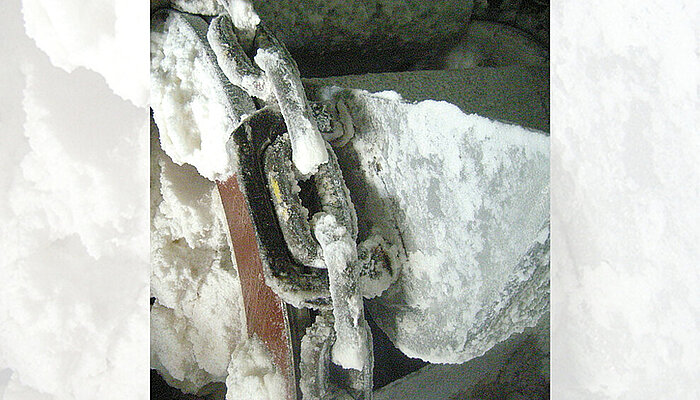

Areas of application & advantages of the SWA system

Areas of application

  • For use in low-speed bucket elevators/elevators with:
    → Gravity discharge
    → Center discharge bucket elevators
    → Return bucket elevators
  • Small conveying capacities
  • Very abrasive and very difficult to discharge conveyed goods
  • The bracket can be reused after replacing the chain
  • Endless chain strands can be used
  • Easy installation at any point on the chain
  • Two-link attachment and smooth running over the chain

Advantages

  • Endless chain strands can be used
  • Simple assembly with variable bucket spacing
  • Two-link attachment for smooth running over the wheels

Technical data



Part number

Chain dxt in mm

A

B

G

H

I

K

Weight in kg

7992042

16x64

140

81

M16

35

105

37

0,6

7982949

19x75

164,4

98,5

M20

40

124

47

1,3

7992040

22x86

190

112

M20

40

145

51

1,4

7987910

26x100

224

130,5

M24

45

170

60

2,8

7990871

30 x 120

258.5

153.5

M30

55

198.5

71

3.5
Conveyor Catalogue
(pdf, 25 MB)
Download

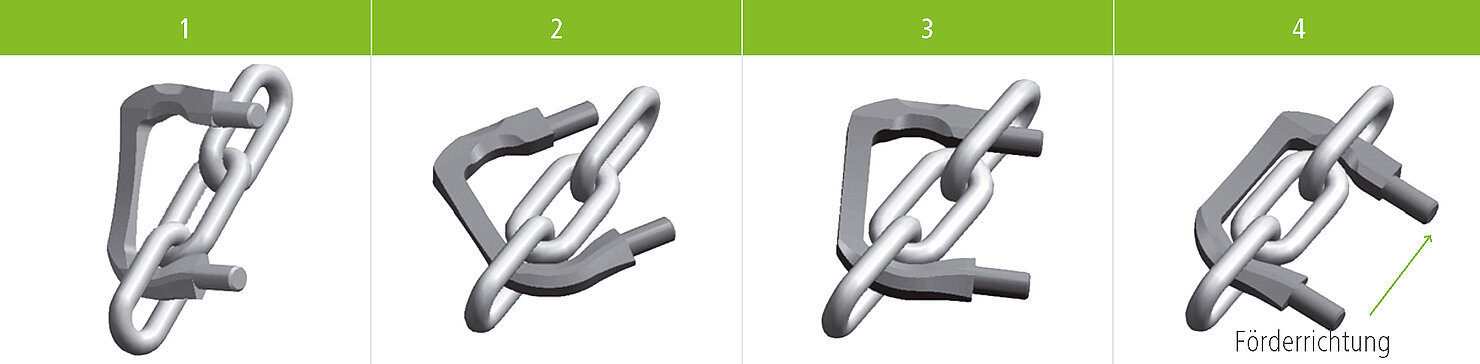

Assembly instructions
