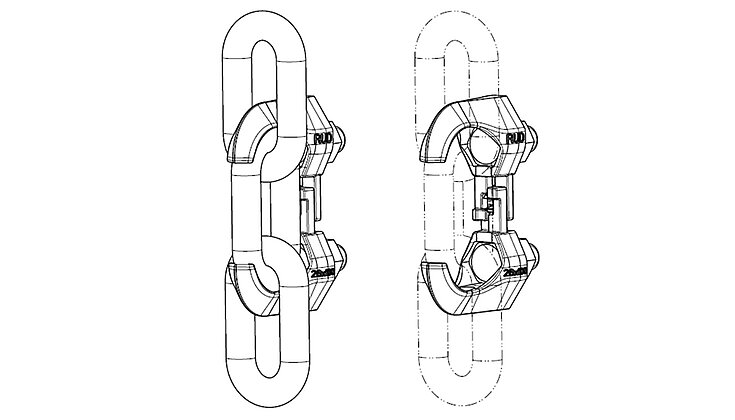

RUD bucket fastening system RUca is the new alternative for DIN bucket fastening systems in round steel chain bucket elevators. Compared to standard components, RUca offers a number of advantages for your conveyor system. Thanks to the smooth interaction with RUD chains and RUD chain locks, RUca always provides positive and non-positive connections, thus reducing chain wear and offering maximum safety against breakage. RUca is highly flexible in its application: The system is suitable for endless chain strands, runs over non-toothed sprockets and can be installed quickly - no special tools are required. It is both an ideal replacement for existing DIN bucket attachments in round steel chain bucket elevators / chain conveyors and the first choice when equipping new systems / conveyor technology.
Advantages
- Can be used for endless RUD chain strands

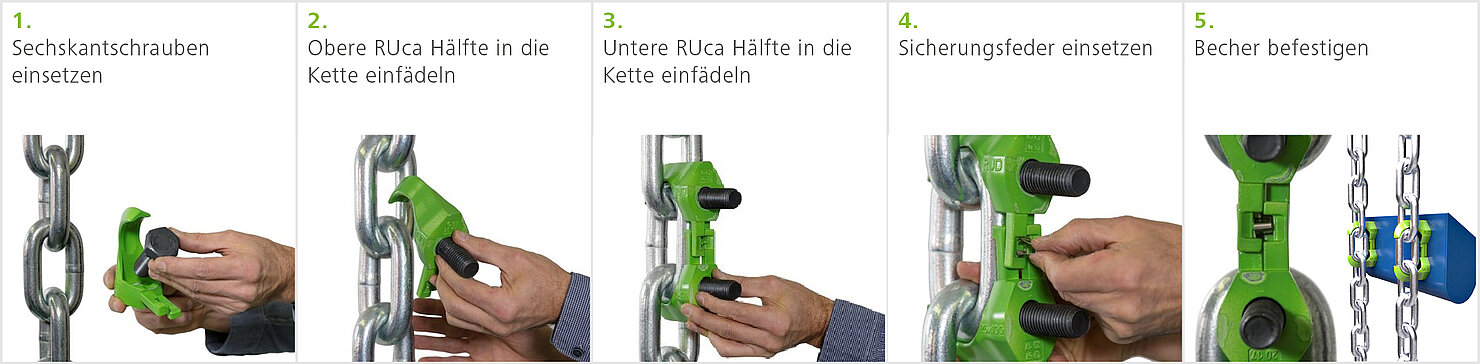

- Short assembly and disassembly times, without special tools
- Ruca bucket attachment only runs over smooth wheels
- Safety against breakage and falling
- Suitable for all DIN bucket attachments in round steel chain bucket elevators (except bucket side wall attachments)
- Low wear of the chain chain
- No oversized components

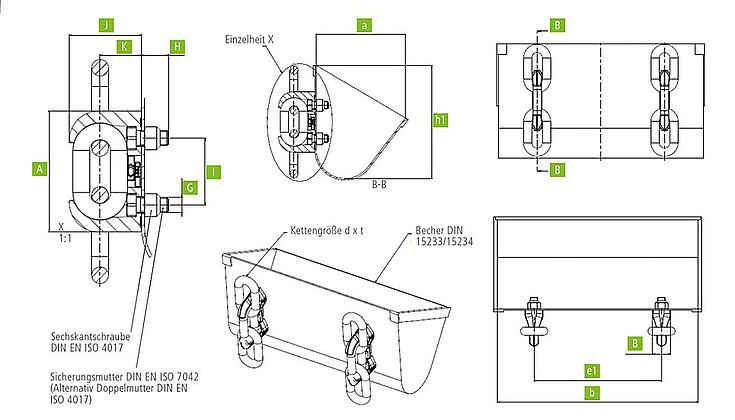

| Part number | Order no. Test set *2 | Ruca Size | Chain dxt | Breaking strength | A | B | G | H | I | J | K *1 | Weight in kg | Common DIN cups DIN15233 DIN 15234 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7908918 | 7908536 | 26 | 26x100 | 265 | 190 | 53 | M24 | 52 | 105 | 113 | 65 (150/60/50) | 2,35 | 630x280 |
